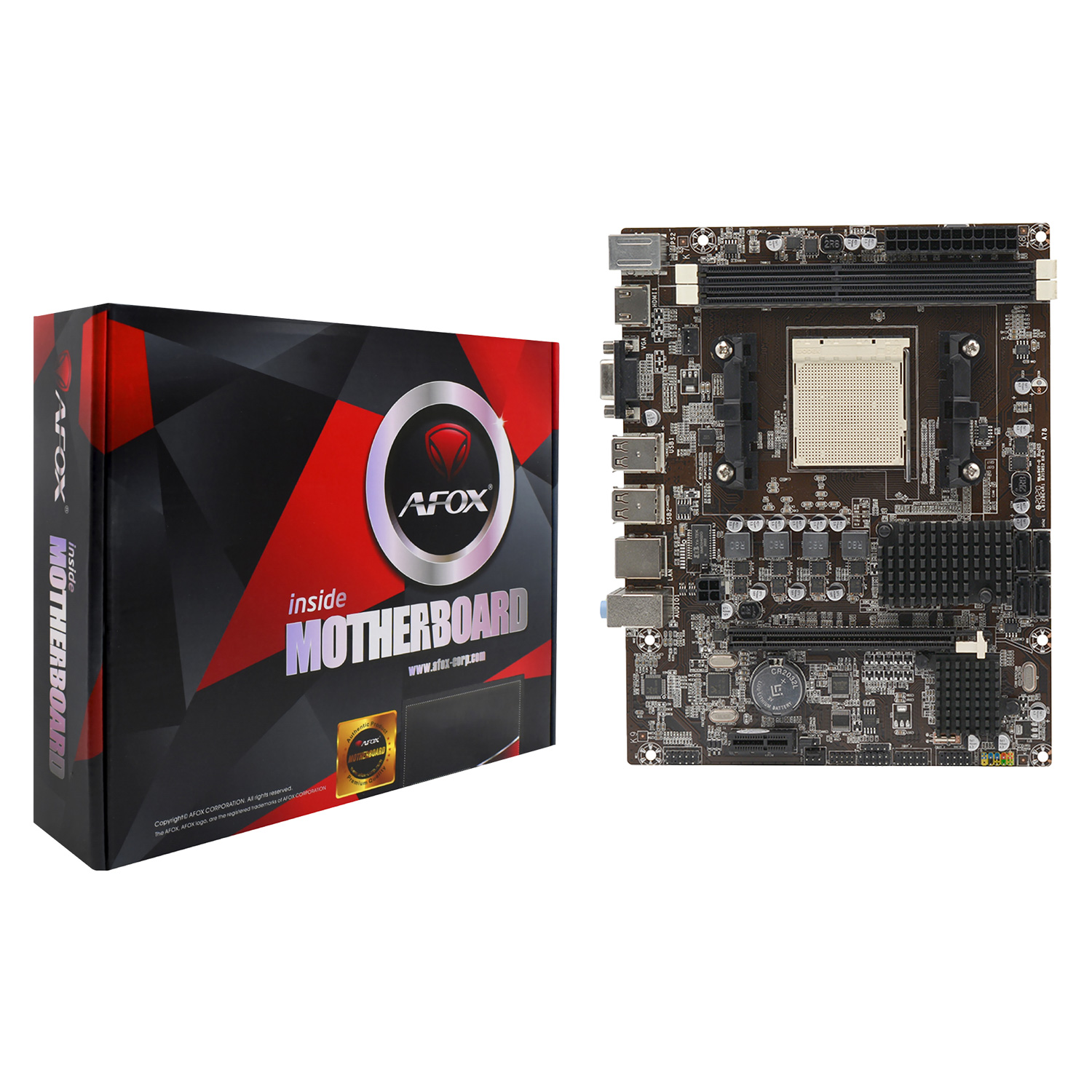

Placa mãe AFOX A78-MAD3 (AM3)

Model Name
A78-MAD3

Chipset
AMD® RS780 + AMD SB710/SB700

CPU Supports
AMD Phenom™ II / Athlon™ X3 / Athlon™ X2 / Athlon™ X4 Processors:
SDX140/AMAX240/ADX635/ADX425/ADX2500/ADX640/ADX440/
HDZ965/HDX955/HDZ550/SDX180/ADX2800/ADXB280   (CPU up to 95 watts)

FSB
1066/1333/1600MHz

Memory
Dual Channel DDR3 1066/1333/1600MHz Dimm
2 x Memory Slots (Max. capacity of system memory 16GB

Onboard Graphics
Integrated AMD Radeon™ HD 3000 series graphics

PCI/PCI-E Slots
1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot

SATA
4 x SATA2

IDE
1 x IDE

Audio
Realtek 662 on board, Supports 6-channel audio-out

LAN
Realtek RTL8105/8106 10/100Mbps Ethernet on board

Back Panel I/Os
1 x D-Sub (VGA) Port
1 x DVI Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors
2 x USB 2.0 pinheader (supports additional 4 x USB 2.0s)
1 x Front Panel Audio pinheader

BIOS
Supports BIOS update

Form Factor
Micro-ATX (17*21 cm)
